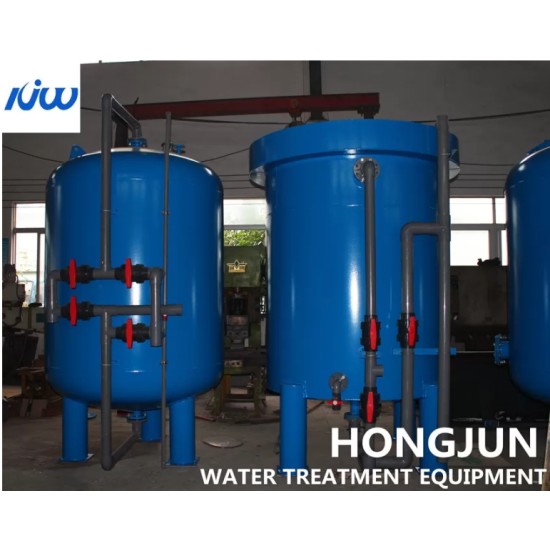

Manual Fe2 Mn2 0.3mg/L Ion Mobile Water Filtration Plant
Description
Material: CS / SS / FRP
Diameter: Customized
Filter Media: Manganese Sand，Resin
Working Pressure: ≤0.6MPa
Outlet Iron Content: ≤0.3mg/L Outlet Manganese Content: ≤0.1mg/L
High Light: 0.6MPa mobile water filtration plant, 0.3mg/L Ion mobile water filtration plant, FRP mobile water treatment plant
Fe2+, Mn2+ Ion Exchange Filtration Equipment,Manual Or Automatic Control
The iron and manganese removal filter is suitable for the iron and manganese removal treatment of groundwater with iron content below 10mg/l, manganese content below 2mg/l, and pH value not less than 5.5. After the treatment, the iron content in the water is less than 0.3mg/l, The manganese content is less than 0.1mg/l, which meets the national drinking water standards.
The automatic iron and manganese removal filter can be used in food, beverage, papermaking, brewing industry, the treatment of iron-exceeding water, groundwater, well water as drinking water for iron removal, geothermal engineering and swimming pool circulating water needs.
Features
1. Unique multi-filter chamber structure can realize online backwashing (filtering, draining and backwashing at the same time).
2. Electricity saving: the effluent is directly supplied to the pipe network without the need for a secondary water supply system; it has its own backwashing function and does not require another backwashing pump.
3. Water saving: This equipment uses a "plum-style water distributor" to shorten the distance between the filter layer and the water distribution pipe, which can save a lot of backwash water.
Technical Parameters
Working environment parameters
①. Working temperature: 5-60℃ (special temperature can be customized);
②. Working pressure: ≤0.6MPa.
Operating parameters
①. Working method: pressure type;
②. Operation mode: water flow from top to bottom, series (high iron and manganese content) or parallel;
③. Filtration speed: 6-10m/h (when removing iron), 5-8m/h (when removing manganese);
④. Operating cycle: depending on the quality of the raw water, the minimum is not less than 8 hours;
⑤. Backwashing method: water washing, or air-water combined backwashing;
⑥. Backwash time: 10-15min;
⑦. Water consumption for backwashing: 1-3%;
⑧. Backwash intensity: 15-20L/s•m2.
