Carbon Steel Large Scale Ion Exchange Water Treatment System

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:HJ
  • Certification:ISO 9001:2008,ISO14001
  • Model Number:Customized
  • Minimum Order Quantity:1 Unit/Units
  • Price:Negotiable
  • Packaging Details:Carton or Wooden case
  • Delivery Time:7-10days after payment arrived
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability:1000 sets per year
Contact Now Chat Now

Carbon Steel Large Scale Ion Exchange Water Treatment System

Description

Product Name: Ion Exchange Equipment

Material: Carbon Steel,304,FRP

Filter Media: Resin

Technique: Ion Exchange Technology

Function: Reduce Hardness From Water

Control Valve: Air Butterfly Valve

High Light: FRP ion exchange water treatment system, ISO14001 ion exchange machine, Resin Filter ion exchange plant

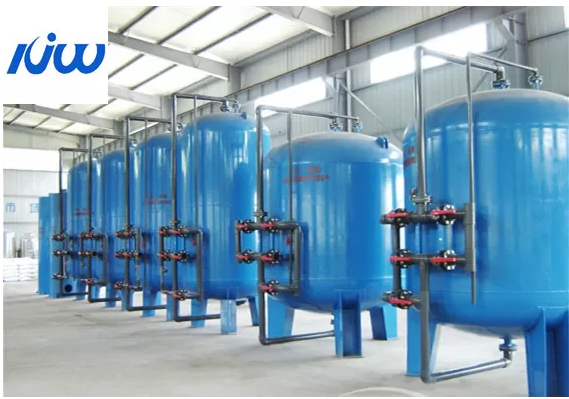

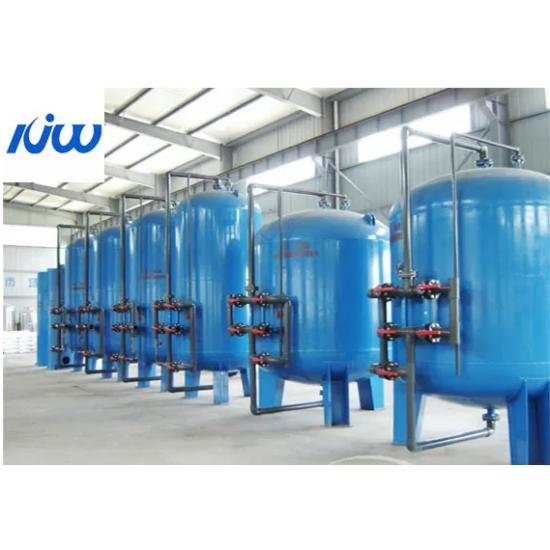

Carbon Steel Large-Scale Ion Exchange Water Treatment Plant

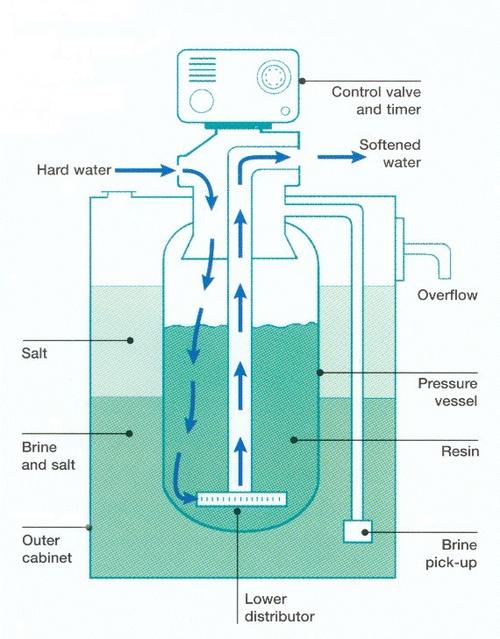

Working principle

The hardness of water is mainly composed of cations: calcium (Ca) and magnesium (Mg) ions. When the raw water containing hardness passes through the resin layer of the exchanger, the calcium and magnesium ions in the water are absorbed by the resin and sodium ions are released at the same time. In this way, the water flowing out of the exchanger is the softened water with the hardness ions removed. When the resin that adsorbs calcium and magnesium ions reaches a certain level, the hardness of the water increases, and the water softener automatically regenerates the failed resin according to the predetermined program. , Use a higher concentration of sodium chloride solution to pass through the resin to restore the failed resin to the sodium resin.


Applications:

1. Feed water of steam boiler, hot water boiler exchanger,evaporative condenser,air conditioner ect.

2. Domestic water of hotel, restaurant, office building, apartment ect;

3. Water softening for food and beverage, brewing, washing, printing, chemical and medicine ect.



Main feature

1. High degree of automation The automatic water softening device automatically completes the cycle of softening and regeneration according to the preset program. It does not require any manual operation except for the regular addition of regeneration salt during operation, which saves a lot of manpower and material resources. The automatic controller or computer automatic controller (optional) we provide allows users to easily adjust the operation of the system according to changes in water quality.

2. Stable effluent water quality The DM water softener produced by Dimei Water Treatment Co., Ltd. accurately sets the program according to the local water quality situation to ensure the effluent quality under any working conditions.

3. High efficiency, low energy consumption, and low operating cost. Due to the reasonable overall design of the water softener and strict automatic control, the resin exchange capacity is guaranteed to be fully utilized, so that the equipment's salt and water consumption indicators are significantly lower than the ordinary Compared with the water softening device, the power consumption is significantly reduced.

4. Reliable operation and long service life. The exchanger shell of the DM water softener is made of high-strength special glass fiber reinforced plastic and composite materials. It is corrosion-resistant and anti-aging. The effective life can reach 50 years. The fully automatic control valve has a unique structure design and is composed of a valve core. It is the only moving part. These characteristics make the control valve reliable and long service life.

5. Small footprint. The advanced process design makes the water softening device compact, significantly reduces the footprint, and saves construction investment.



Packaging & Shipping

We use standard export packing ways to avoid cargo damage during shipment.
