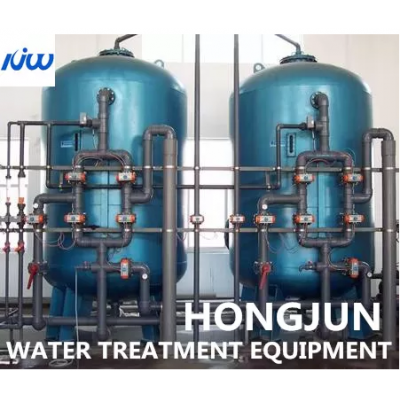

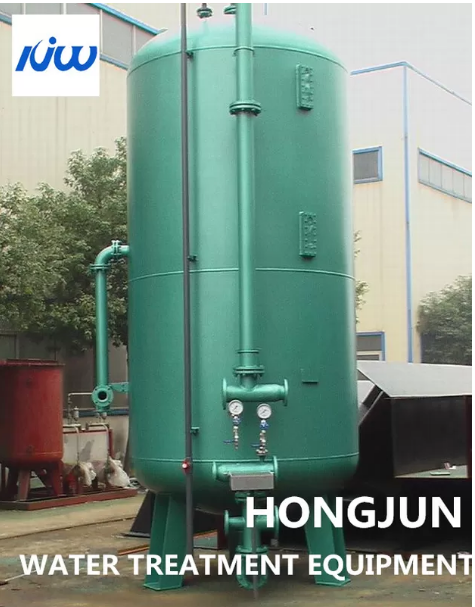

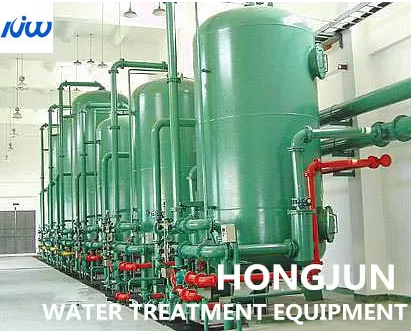

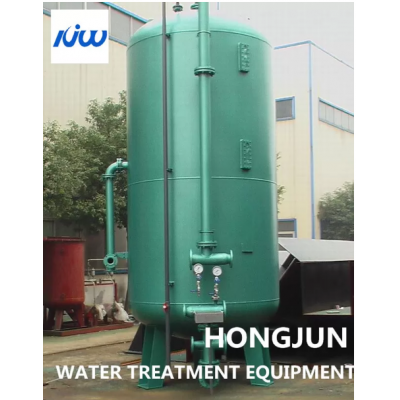

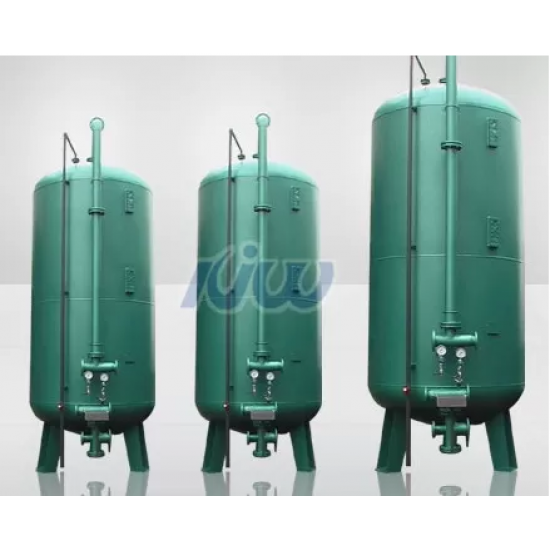

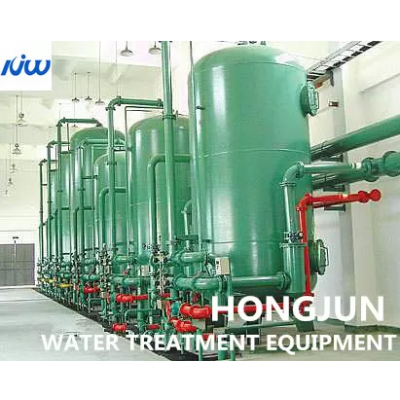

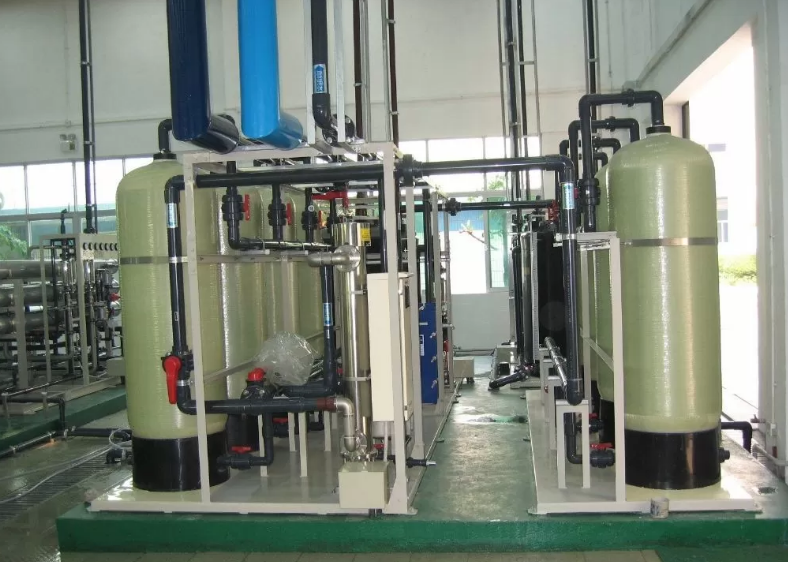

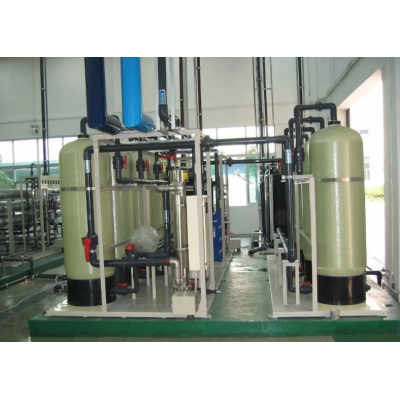

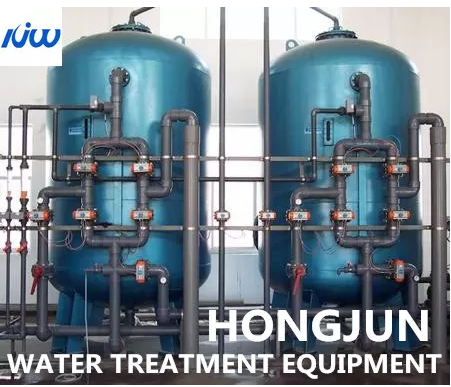

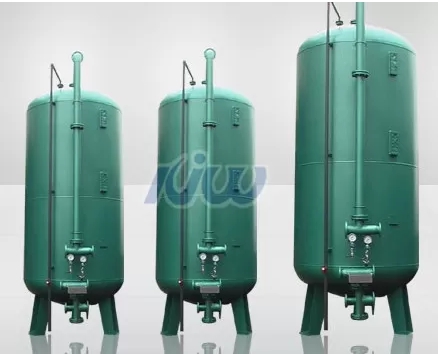

Food Industry Anion Cation Mixed Ion Exchange Equipment
Description
Technique: Ion Exchange Technology
Filling Material: Cation Resin,anion Resin Or Mixed Bed
Control: Automatic Or Manual

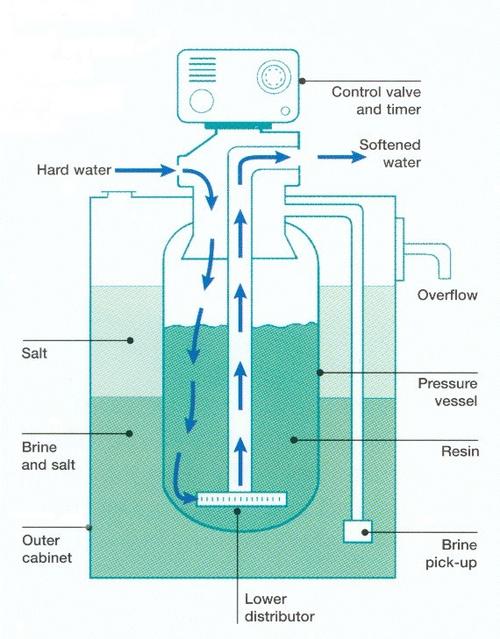

Work Procedure: Exchange Softening, Backflushing, Salt Feeding, Regenerating,etc.
Voltage: 110v/220v/380v
Application: Commercial, Domestic, Industry,etc
High Light: Cation Resin Ion Exchange Equipment, Backflushing Ion Exchange Equipment, Ion Exchange Ro Water Purifier
Anion & Cation Mixed Exchange System,Large-scale food industry
Ion exchange normally be divided in to caion ion exchange, anion ion exchange and mix-bed ion exchange.
Based on the water situation and customer requirement to select to device.
Function: Automatic control and semi-control.
Certificate: ISO9001, CE and BV.
Suggestion: With Regenerate system can effectively extend the life of resin and make sure the discharge water
Pure and clean.
Process flow
1. Desalination of brackish water, defluoridation of groundwater
Raw water→101 filter→precision filter→electrodialysis device→hollow fiber ultrafilter→ultraviolet sterilizer→finished water
2. Production of purified drinking water and space water
Raw water → mechanical filter → activated carbon filter → precision filter → electrodialysis device → cation exchanger → anion exchanger → mixed ion exchanger → hollow fiber ultrafilter → ultraviolet sterilizer → ozone sterilization device → finished water
3. Water for injection preparation and large infusion preparation in the pharmaceutical industry
Raw water → activated carbon filter → precision filter → electrodialysis device → cation exchanger → anion exchanger → mixed ion exchanger → multi-effect distilled water machine → product water
4. Water for fertilizer and machinery industries
Raw water → mechanical filter → precision filter → electrodialysis device → cation exchanger → degassing tower → anion exchanger → product water
For the disinfection of purified water, "ozone" is recommended. After ozone disinfection, there is no residue
