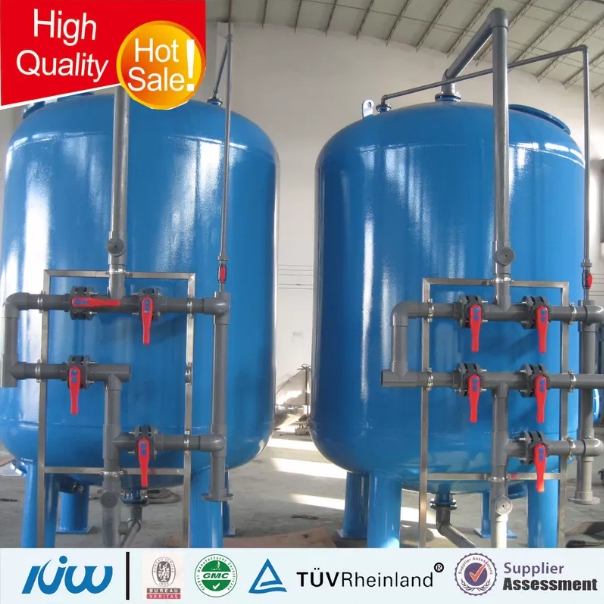

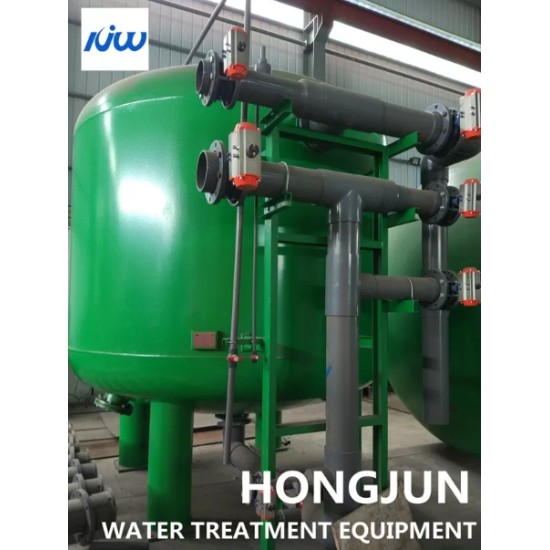

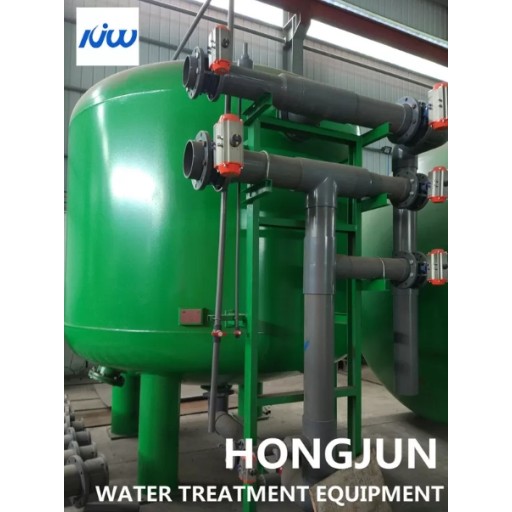

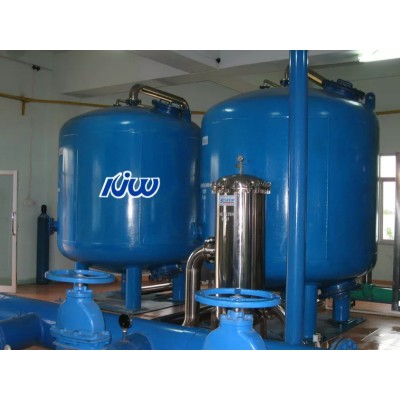

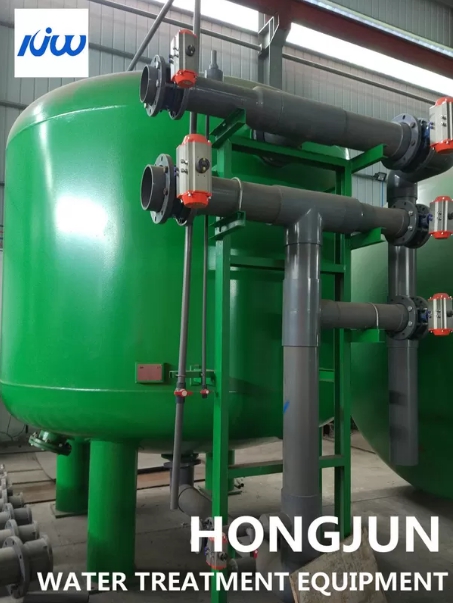

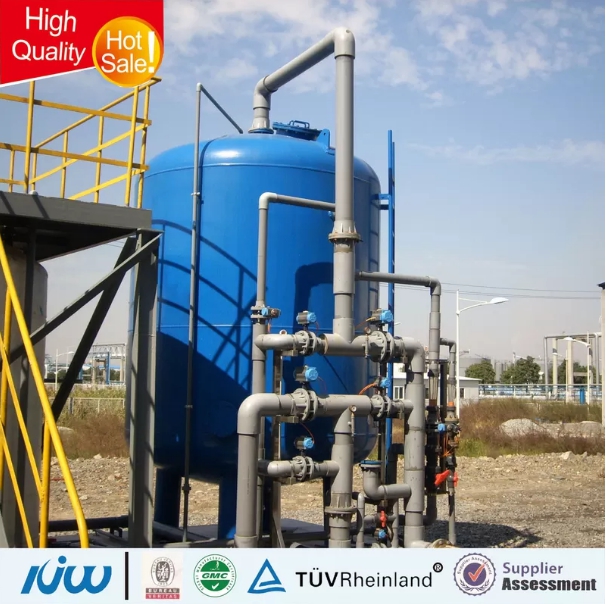

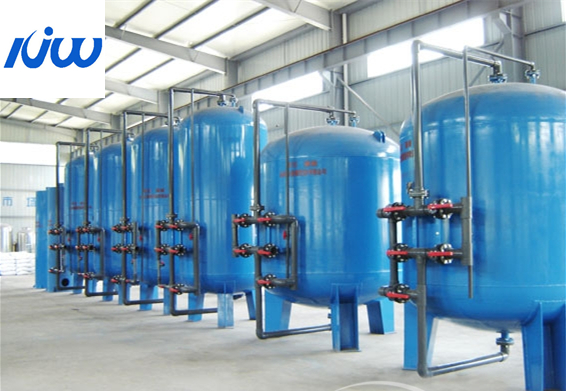

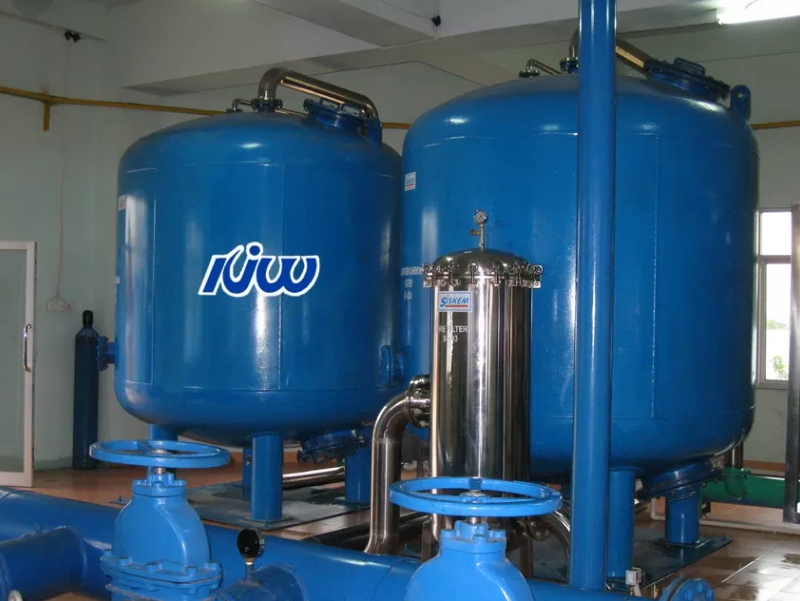

DN2000 Commercial Carbon Steel Pretreatment Resin Tank

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:HJ
  • Certification:ISO 9001,ISO18001,ISO14001,CE
  • Model Number:Customized
  • Minimum Order Quantity:1 Unit/Units
  • Price:Negotiable
  • Packaging Details:Carton or Wooden case
  • Delivery Time:7-10days after payment arrived
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability:1000 sets per year
Contact Now Chat Now

DN2000 Commercial Carbon Steel Pretreatment Resin Tank

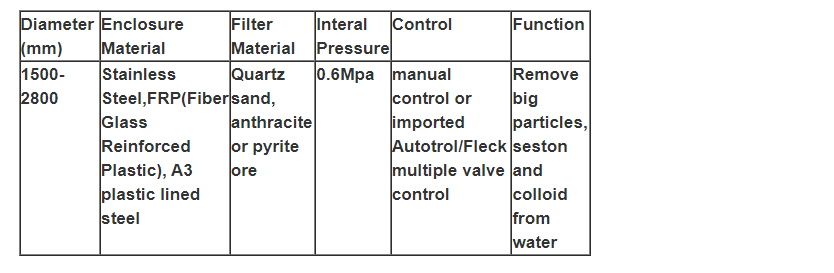

Description

Material: Carbon Steel

Diameter: DN2000

Piping: UPVC

Application: Filter Tank, Water Tank,

Usage: Water Treatment Equipment

Capacity: 0.3-200000T/H

Voltage: 220v/380v

High Light: Carbon Steel Pretreatment Resin Tank, DN2000 Pretreatment Resin Tank

DN2000 Commercial Industry Carbon Steel Pretreatment Tank Resin Tank



Product Introduction

The filter tank is made of layered sand, finely divided garnet or other materials as the bed. The top layer of the bed is composed of coarse-grade materials, and the heavy and fine-grade materials are placed at the bottom of the bed. The principle is to filter by depth-the larger particles in the water are removed in the top layer, and the smaller particles are removed in the deeper part of the filter medium. So that the water quality reaches the standard after coarse filtration.


Performance characteristics:

The multi-media filter can remove large suspended particles in the water, thereby reducing the SDI value of the water and meeting the water quality requirements for deep purification. The equipment has the characteristics of low cost, low operating cost and simple operation; the filter material can be used for many times after backwashing, and the filter material has a long service life.



Application scope:

Multi-media filters are widely used in water treatment processes, mainly for the pretreatment of water treatment turbidity removal, softened water, electrodialysis, reverse osmosis, and can also be used for surface water and groundwater desilting.



Product category:

Multi-media filters can be divided into manual type and fully automatic type according to the control type. The manual type mainly controls the operation, forward washing, and backwashing of the filter through the adjustment of the valve; while the automatic type controls the operation of the filter, forward washing, backwashing and other states through the FLECK controller, according to the tank body The materials can be divided into glass steel tanks, carbon steel tanks, and stainless steel tanks. The inner wall of the tank can be coated with epoxy coating or lined with rubber for anti-corrosion according to user requirements.


Tag: activated carbon filter tank, pressure filter tank, sand filter tank replacement
