Commercial UPVC Deep Well Ultrapure Water Purification System Customized Design
Description
Product Name: Ultra Filtration Systems
Application: Cosmetics, Food, Pharmaceutical
Voltage: 220V OR 380V
The Brand Of Main Components: DOW,Hydranautics ,Grundfos ,CNP
Process: Pre-treatment +RO+EDI +Polishing Resin
Material: Stainless Steel , UPVC
High Light: ultrafiltration water treatment plant, ro water purification plant
Product Name: Commercial Stainless Steel Deep Well Ultrapure Water Purification System
The Preparation Process of Typical Electronic Grade Ultra Pure Water
Pre-treatment ---RO Device---Water Tank---Cation Bed---Anion Bed---Mixed Bed ----Pure Water Tank ---Pure Water Pump ---UV ---Precision Mixed Bed ---Microporous Membrane Filter ---The used water point
Pre-treatment---the first stage RO ---PH adjust Device---Buffer Tank---the second stage RO---Pure Water Tank ---Pure Water Pump---UV--Microporous Membrane Filter---The used water point
Pre-treatment---Double stage RO---Middle Pure Water Tank ---Water Pump---EDI Device---Pure Water Tank---Pure Water Pump---UV--Microporous Membrane Filter---the used water point (The New Technology)
Pre-treatment--Double stage RO--Middle Pure Water Tank---Water Pump---EDI Device ---Pure water tank ---Pure Water Pump---UV--Polish resin mixed bed ---TOC Decomposer---Microporous membrane filter---the used water point. (The latest process)

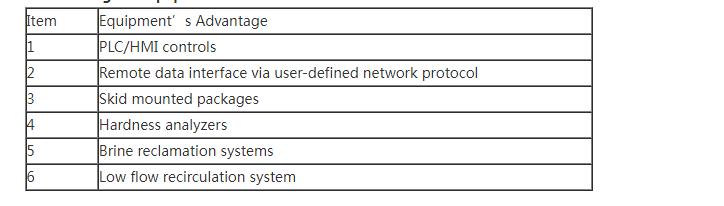

he advantage of equipment
Note : We can provide detailed scheme of design according to actual your requirement .
