50HZ 60HZ Commercial Water Purifier Plant , Ultra Pure Water Treatment System
Description
Production Capacity: 0.5L-5T, Customized
Size: Depend On The Capacity
RO Membrane: CSM Or DOW
he Brand Of Main Components: DOW,Hydranautics ,Grundfos ,CNP
Process: Pre-treatment +RO+EDI +Polishing Resin
Usage: Purifying The Water
High Light: ultrafiltration water treatment plant, ro water purification plant
Product Name: RO water filter with EDI high Purity Water Ultrapure water plant
The Preparation Process of Typical Electronic Grade Ultra Pure Water
Pre-treatment ---RO Device---Water Tank---Cation Bed---Anion Bed---Mixed Bed ----Pure Water Tank ---Pure Water Pump ---UV ---Precision Mixed Bed ---Microporous Membrane Filter ---The used water point
Pre-treatment---the first stage RO ---PH adjust Device---Buffer Tank---the second stage RO---Pure Water Tank ---Pure Water Pump---UV--Microporous Membrane Filter---The used water point
Pre-treatment---Double stage RO---Middle Pure Water Tank ---Water Pump---EDI Device---Pure Water Tank---Pure Water Pump---UV--Microporous Membrane Filter---the used water point (The New Technology)
Pre-treatment--Double stage RO--Middle Pure Water Tank---Water Pump---EDI Device ---Pure water tank ---Pure Water Pump---UV--Polish resin mixed bed ---TOC Decomposer---Microporous membrane filter---the used water point. (The latest process)

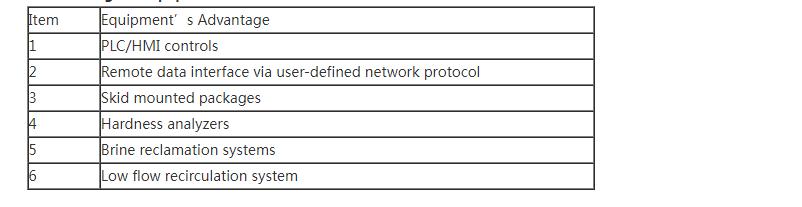

he advantage of equipment
Note : We can provide detailed scheme of design according to actual your requirement .
Tag: ultrafiltration water treatment plant, ultrafiltration water purifier, ro water purification plant
