Features:

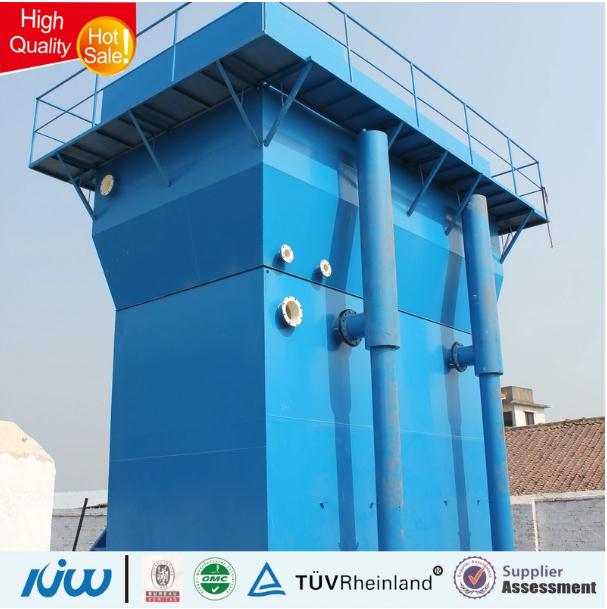

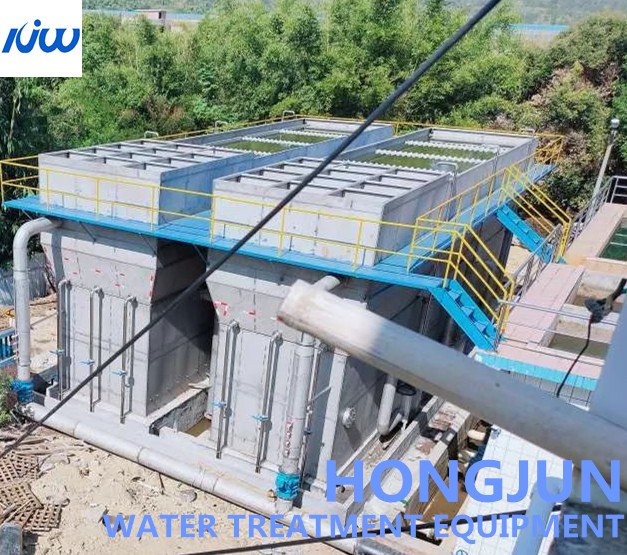

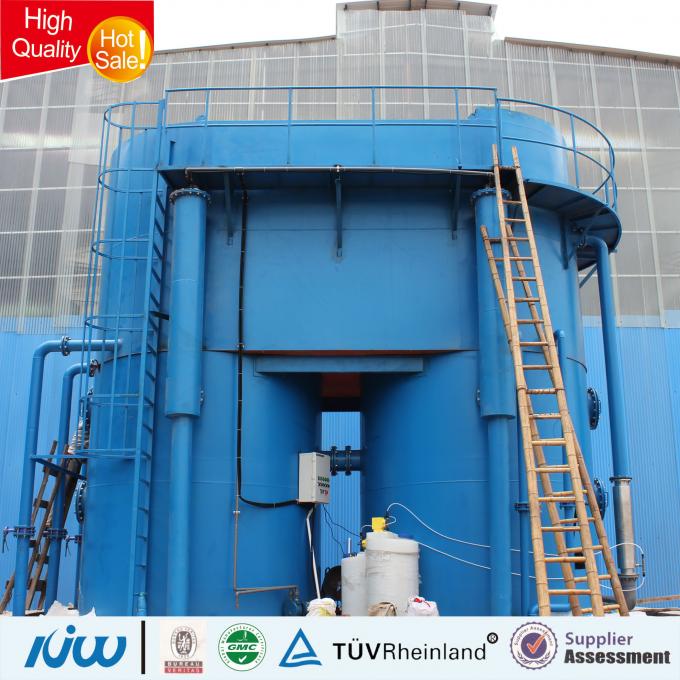

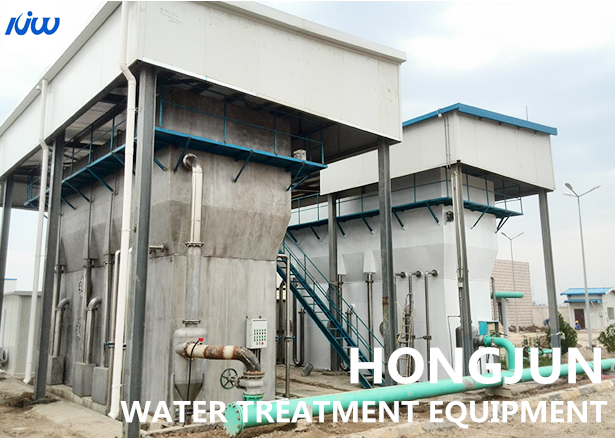

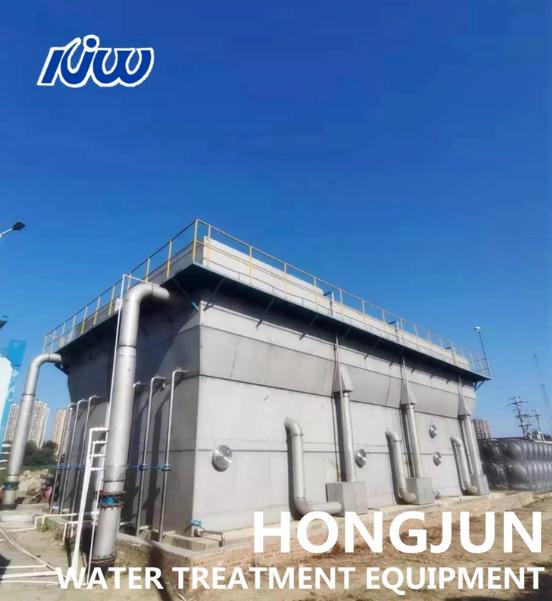

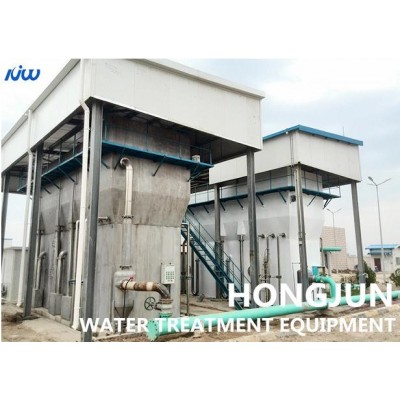

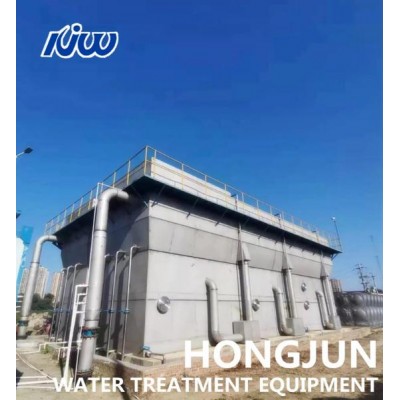

1. In addition to the management of the first-level pump room and the dosing system, the automatic backwash integrated water purifier itself includes reaction, flocculation, sedimentation, sludge collection, sludge discharge, water collection, water distribution, filtration, backflushing, sewage discharge, etc. A series of operating procedures meet the requirements of automatic operation. The personnel on duty only need to monitor and determine the water quality regularly, without the need to manage the operation of the water purification device.
2. The high-concentration flocculation layer can make the impurity particles in the raw water have sufficient collision contact and adsorption probability, so it can adapt to the water temperature and turbidity of various raw water, and the impurity particle removal rate is high. Under certain conditions of use, it also has the function of removing algae.
3. The swift sludge thickening chamber and the adjustable automatic sludge discharge system can ensure that the excess sludge impurities are removed in time, thereby ensuring a stable removal rate of impurity particles.
4. Efficient flocculation and sedimentation effects keep the water quality of the sedimentation water always in good condition.
5. The novel and original water collection system and the lowest water collection head of the self-flushing integrated water purifier make the water collection more uniform and effective, not only improving the volume utilization coefficient, because of its extremely small water collection head, the cumulative power saving effect is considerable .
6. The automation of the HR high-efficiency automatic integrated water purifier system not only ensures the high-efficiency filtration of the water purification system, (when the turbidity of the raw water is less than 3000mg, the turbidity of the filtered water can be kept below 3mg) and can automatically backwash, There is no need to set up additional electrical equipment such as backwash pumps or air compressors, which can save a lot of infrastructure investment and daily operation, repair, and maintenance costs.
7. The low self-consumption rate is about <5%, which plays a positive role in saving limited water resources.
8. The area is small. Compared with general water purification structures, the automatic backwash water processor can save less than 50% of the area, and the height is about 4.10 meters. It can be installed indoors and outdoors.
9. It is convenient for expansion, transformation, reuse, relocation or reuse.
Tag: industrial water purification system, industrial water purification machine, industrial water treatment plant
