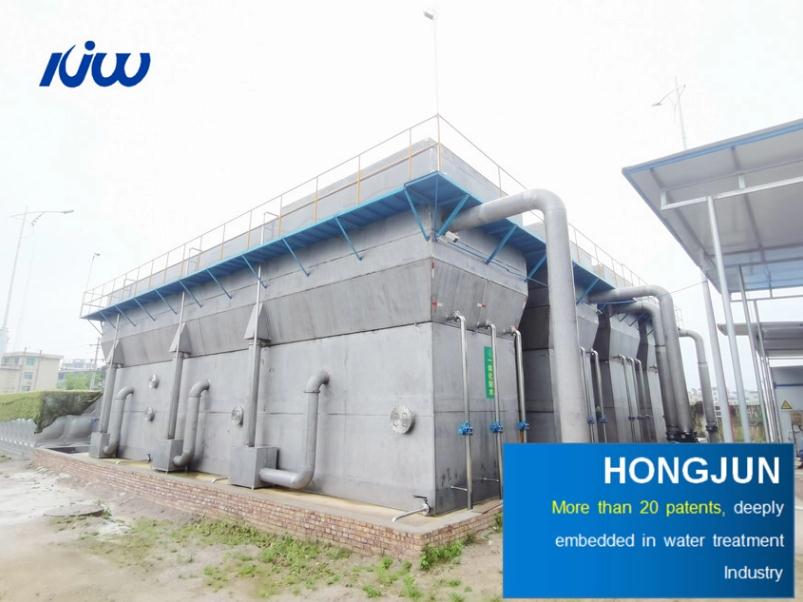

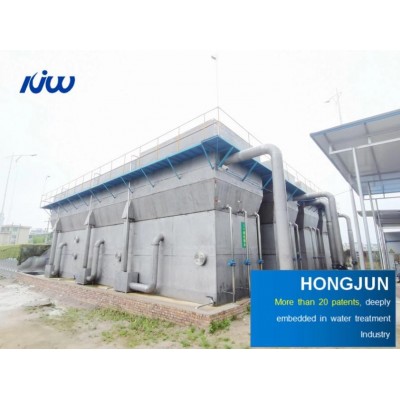

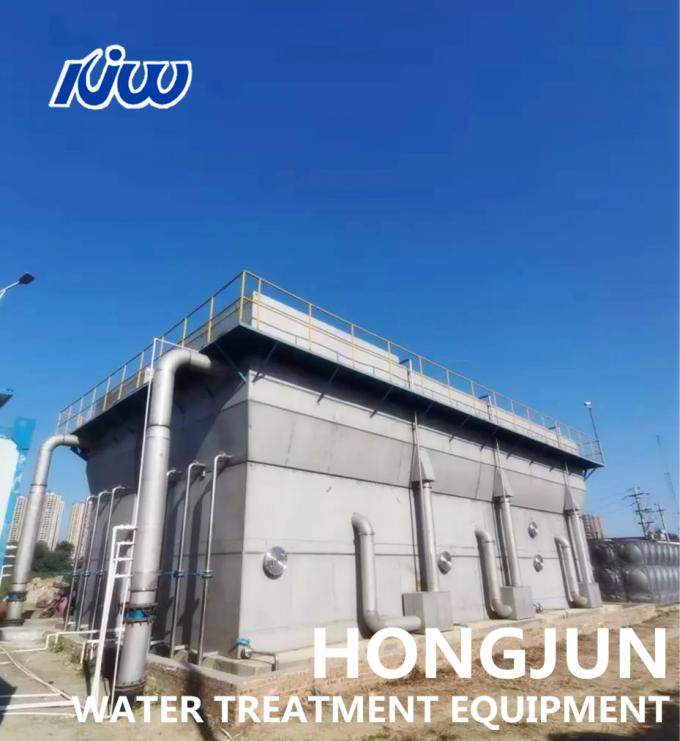

1. Overview:

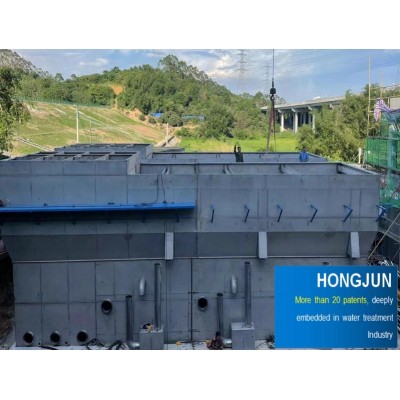

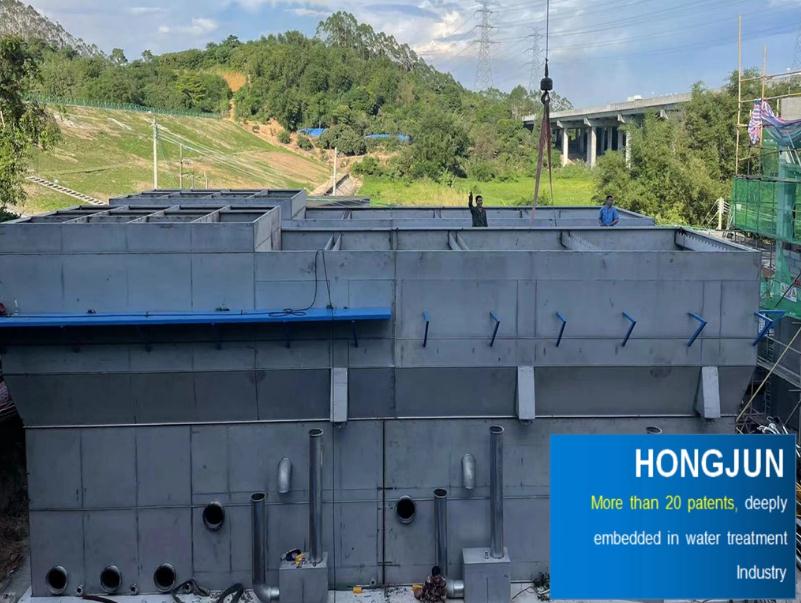

In this water purification plant, raw water is from river. At the begnning, river water will b passed through all in one sedimentation device to remove some big particles, like suspended solid, mud and sand. Then flow to mechanical filters to remove susended solid, colloid and silt. At last to activated carbon filter to remove organic matter, residual chlorine, color, odor and some impurities. All the devices above are sonsist of a perfect pre-treatment system.
The whole system could be controlled automatically by relay, water level detector, pressure transducer or manually by man power. Usually, the system is set to be controlled automatically. The system could provide pure water continuously. It's easy, safe and reliable.
Chemicals dosing system:
PAC dosing device→Piping mixer
PAM dosing device→Pingping mixer
PH dosing device→Outlet from clean water tank
Bleaching powder dosing device→Outlet from clean water tank
Water Quality Compare
Inlet water/Water source: Turbidity≤3000mg/L
Product water quality; Turbidity≤3mg/L
Detail introduction:
1)Piping mixer:
Size:630*180*180mm
Material: Stainless steel material,better corrosion resistance
Function: mixing the chemicals PAC & PAM with water
2)Reaction tank:
Size:500*1500*6000mm
Material: Carbon steel
Function: Space for chemicals reacting with water,removing particles,suspended solids,etc.
3)Sedimentation tank:
Size:2000*1500*3000mm
Material: Carbon steel
Function: Space for flocculants sedimentation
4)Sand filter/Valveless filter:
Size:1500*1700*2000mm
Material: Carbon steel
Function: further purifying water.Valveless filter can backwash water automatically by gravity.
5)Clean water tank
Size:1500*1700*1000mm
Material: Carbon steel
Function: Final purified water will be stored here.
