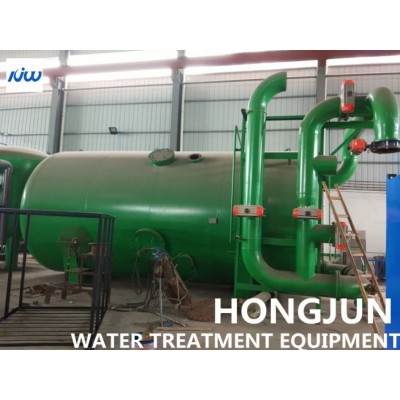

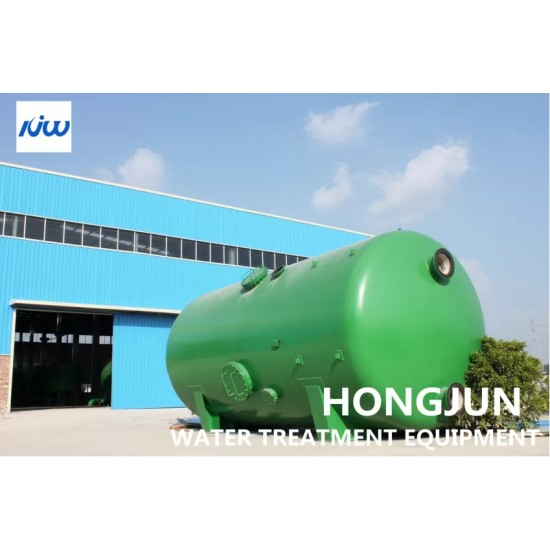

Customized Sand Filter Horizontal Carbon Steel Tank Epoxy Paint Vessel 200000T/H
Description
Material: Carbon Steel Or Stainless Steel Or Frp
Type: Sand Filter Horizontal Carbon Steel Epoxy Paint Vessel
Application: Commercial, Industry, Domestic, Etc
Product Type: Customized
Function: Water Filter
Capacity: 0.3-200000T/H
Control: PLC
High Light: Horizontal Carbon Steel Tank, 200000T/H Carbon Steel Tank
A23 Customized Sand Filter Horizontal Carbon Steel Epoxy Paint Vessel
Carbon steel tank have inside and outside epory paint or HDPE for rust prevention and corrosion prevention,
paint color can choose by client, have vertical and horizontal type, filter and acid is available to put in.
Scope of application of quartz sand filter
It is suitable for the filtration of drinking water and other water purification treatments, and it is more suitable for the pre-treatment and circulating water treatment of production water in petroleum, chemical industry, mining, metallurgy, thermoelectricity, printing and dyeing, tanning, food, etc., as well as the recycling of sewage.
Other uses of quartz sand: Quartz sand is used to make glass, refractory materials, ceramics, smelting ferrosilicon, floor, architectural coatings, casting, grinding, etc.
Technical parameters of quartz sand filter:
1. Design filtration rate: 8-12m/h. When the head loss is about 5m, backwash regeneration is required (usually by reading the pressure difference between the inlet and outlet at 0.05MP).
2. Anti-cleaning intensity: 10-15L/sec•m².
3. Rinsing duration: 5-7 minutes
4. Inlet water pressure: ≥0.4Mpa Backwashing water pressure: ≥0.20Mpa
5. The expansion rate is 25%-50%.
Tag: activated carbon filter tank, pressure filter tank, sand filter tank replacement
