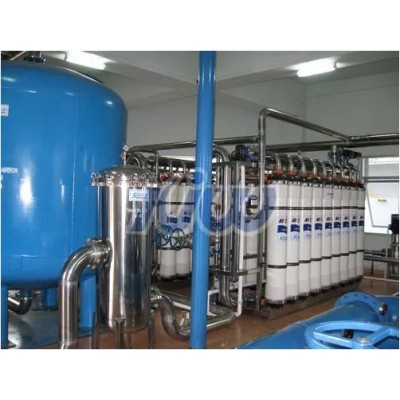

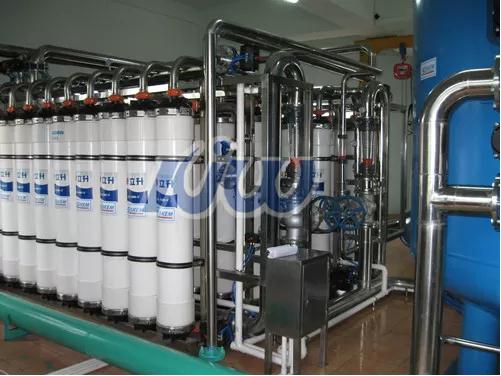

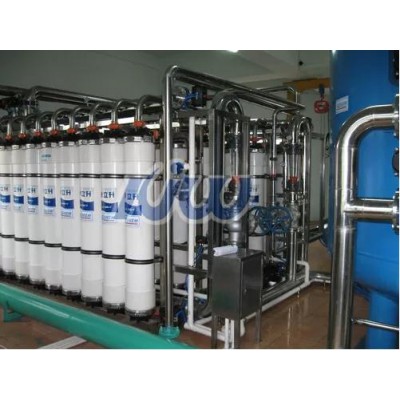

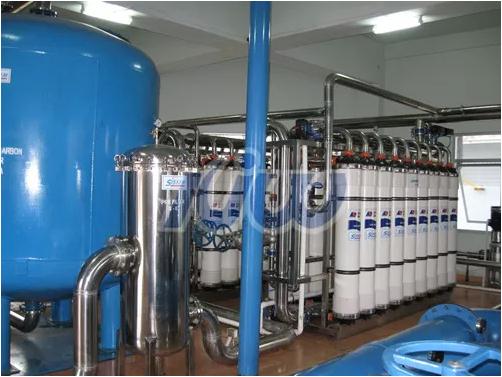

3kw Ultrafiltration Water Treatment Equipment Mineral Water Machine
Description
Material: Stainless Steel ,FRP
Type: Pure Water Treatment System
Function: Producing Fresh Water
Process: Pre-treatment +RO+UF +Polishing Resin
Voltage: 220V / 380V
Power: 1.1kw~3kw
Control: Manual And Automation
High Light: Ultrafiltration Water Treatment Equipment, 3kw Water Treatment Equipment, 2000000LPH Membrane Purification Equipment
Manufacture Mineral Water Machine Ultrafiltration Water Treatment Equipment
Classification of Ultrafiltration Membrane
The structure of UF Membrane can be divided into plate frame type(plate type) ,Hollow Fiber Type,Tubular Type ,Coil Type and so on .Among them ,the hollow fiber UF Membrane is the most mature and advanced form of ultrafiltration technology .The outer diameter of Hollow Fiber Membrane is 0.4--2.0mm,the inner diameter is 0.3--1.4mm,hollow fiber tube wall is filled with microporous,the pore size can intercept the molecular weight of the material expression,the interception of the molecular weight of up to several thousand to hundreds of thousands.The raw water flows by pressing of outside side of hollow fiber of inside the cavity ,that forming external pressure and internal pressure type of hollow ultrafiltration membrane respectively .The UF is a dynamic filtration process ,the intercepted molecular can be drainned with concentrate without blocking the surface of the memebrane and can run continuously for a long time.

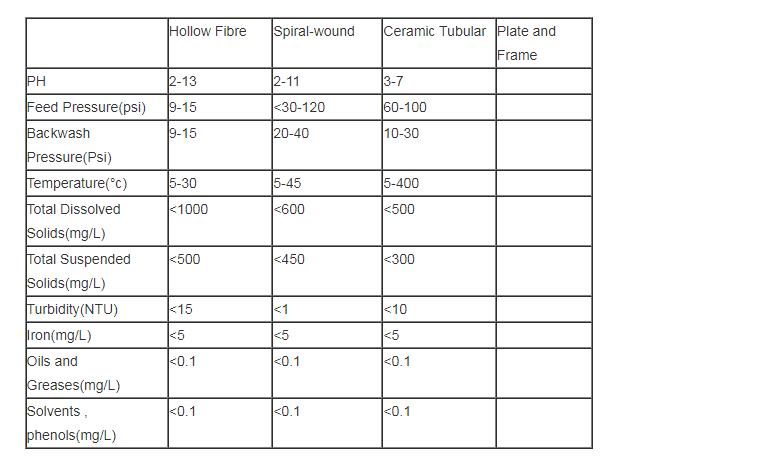

The Comparision of the kind of membrane :
Common Applications
Municipal drinking water filtration
Industrial waste water recovery
COD reduction
RO&NF pre-treatment
UF Work Principle
The Ultrafiltration is used to screening as separation principle ,that is process of membrane separation with the pressure ,the precision of filtration is in 0.005-0.01μm range,which can effectively remove particles ,colloids ,bacteria ,pyrogen and high polymer organic matter in water .It can be widely applied to the separation ,concentration,purification of substances .The Ultra filtration Process has no phase inversion , operation under normal temperature.It is better to separate for pyrogen ,and have good resistance heat ,resistance acid &alkali and oxidation resistance ,and it is continuously used under 60℃ and PH 2-11 for a long time.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is the production period?
A: For desktop and water purifier , it would be 7~15 days; For large scale water purification system and customized water filter system according to client s specific requirements, it would be 25 to 45 days.
Q: Do you support customization?
A: Yes,Our products are completely customizable to the requirements.
Q: What's the guarantee, in case the water purifier breaks down?
A: The water purifier (except consumable items) has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
Q: How about the documents after shipment?
A: After shipment, we ll send all original documents to you by DHL or FedEx, including Packing List,Commercial Invoice, B/L, and other certificates as required by clients.
Q: How's the payment?
A: Telegraphic Transfer (T/T) or Letter of credit (L/C), Western Union is also OK.
Q: Do You Arrange Shipment For The large scale water treatment equipment?
A: Yes, dear esteemed customers, for CFR or CIF price, we will arrange shipment for you. For FOB price, clients need to arrange shipment by themselves or their forwarders.
Q: Where is your factory?
A: Our company is in Chancheng District, FoShan, China.
Q: I have other questions. What should I do?
A: We always welcome your product consultation.( ^_^ )
Tag: ultrafiltration water treatment plant, ultrafiltration water purifier, ro water purification plant
