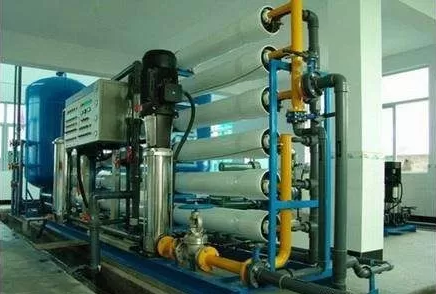

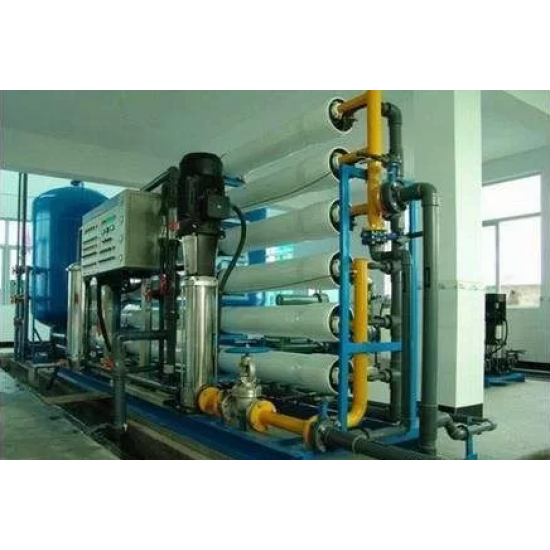

Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:HJ
  • Certification:ISO ,CE
  • Model Number:HJ
  • Minimum Order Quantity:1 Unit/Units
  • Price:negotiable
  • Packaging Details:Carton or Wooden case
  • Delivery Time:7-10days after payment arrived
  • Payment Terms:D/A, L/C, D/P, T/T, Western Union, MoneyGram
  • Supply Ability:1000 sets per year
Contact Now Chat Now

Industrial Ultrafiltration Membrane System , 5000 LPH Membrane Filtration Equipment

Description

Pipeline Material: UPVC

Usage: Drinking

Membrane: Hollow Fibre Membrane

Application: Commerce,Industry

Output Water PH: 6.4-7.2

Capacity: 200 Lph ---10000lph

High Light: membrane filtration equipment, ultrafiltration water system

Product Name: Ultrafiltration UF ultra pure water System for water treatment plant



Classification of Ultrafiltration Membrane

The structure of UF Membrane can be divided into plate frame type(plate type) ,Hollow Fiber Type,Tubular Type ,Coil Type and so on .Among them ,the hollow fiber UF Membrane is the most mature and advanced form of ultrafiltration technology .The outer diameter of Hollow Fiber Membrane is 0.4--2.0mm,the inner diameter is 0.3--1.4mm,hollow fiber tube wall is filled with microporous,the pore size can intercept the molecular weight of the material expression,the interception of the molecular weight of up to several thousand to hundreds of thousands.The raw water flows by pressing of outside side of hollow fiber of inside the cavity ,that forming external pressure and internal pressure type of hollow ultrafiltration membrane respectively .The UF is a dynamic filtration process ,the intercepted molecular can be drainned with concentrate without blocking the surface of the memebrane and can run continuously for a long time.

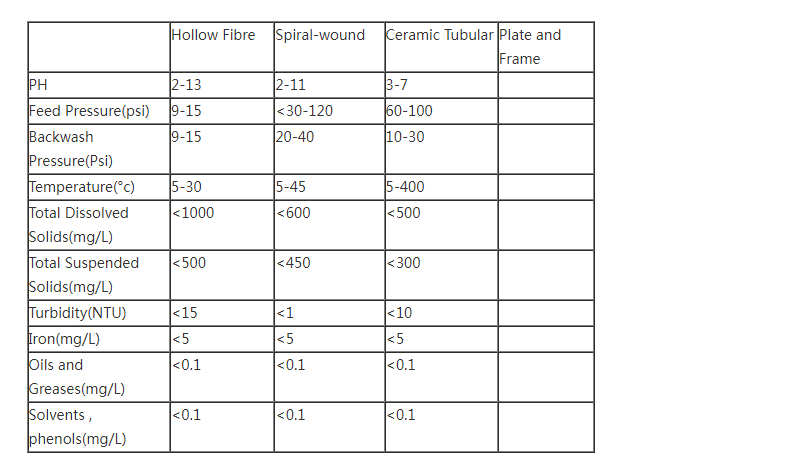

The Comparision of the kind of membrane :
