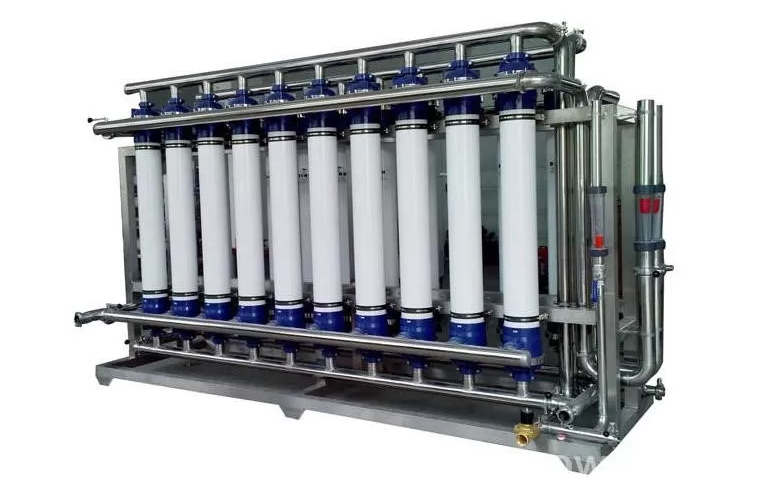

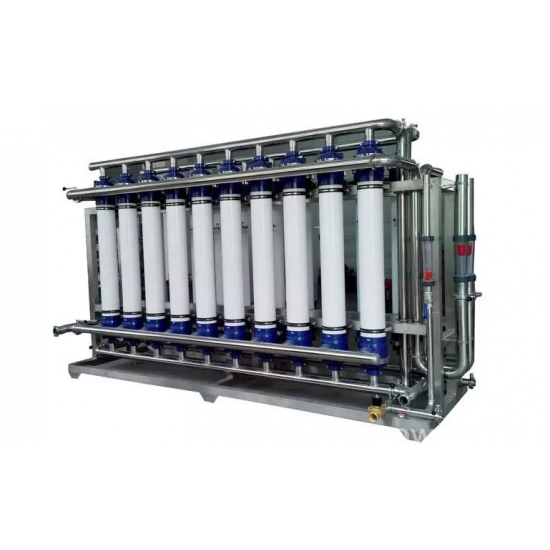

Hollow Fiber Ultrafiltration Machine 200-10000 Lph Capacity Easy Maintenance
Description
Pipeline Material: UPVC ,Stailess Steel
Recovery Rate: 50%--57%
Membrane: Hollow Fibre Membrane
Application: Commerce,Industry
Output Water PH: 6.4-7.2
Capacity: 200 Lph ---10000lph
High Light: membrane filtration equipment, ultrafiltration water system
Product Name: Hollow Fiber UF Membrane 500~10000 lph Ultrafiltration System
Product Profile :
The ultrafiltration systems are usually operated in a pressure range of 10 to 50 psig and they remove particles in size down to as small as 0.02μs/cm.Typical flux(rate of finished water permeate per unit membrane surface area)for UF system is 10 -100gallons per square foot per day(gfd).
Our membrane filtration system uses advanced hollow fiber of ceramic technologies which operate in the outside-in or inside-out direction of flow .Given the small membrane pore sizes used with these technologies,fouling due to deposition of organic and inorganic compounds on the membrane may occur if the ultrafiltration system is not properly designed and operated .Therefore ,we use automated backwashing ,air scour and chemical flushing processes to restrict the rate of membrane fouling within acceptable limits .Chemical cleaning is employed once the maximum trans membrane pressure has been reached ,Typical cleaning agents utilized include acids,caustic,surfactants ,enzymes and certain oxidants ,depending upon membrane material and fouling type .
Common Applications
Municipal drinking water filtration
Industrial waste water recovery
COD reduction
RO&NF pre-treatment

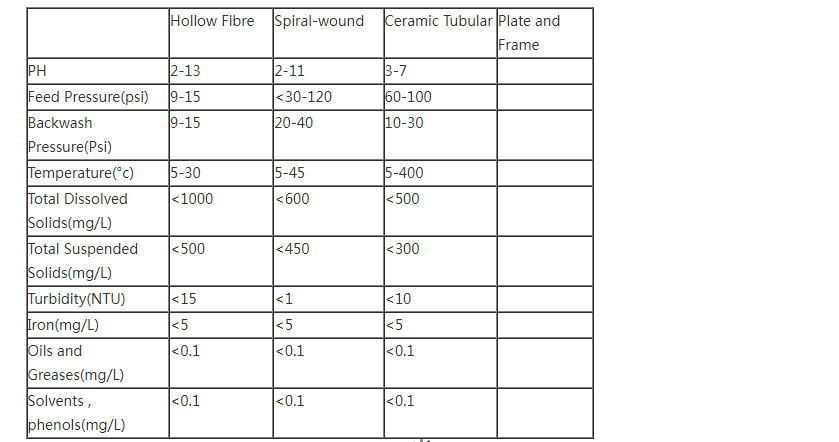

The Comparision of the kind of membrane :
