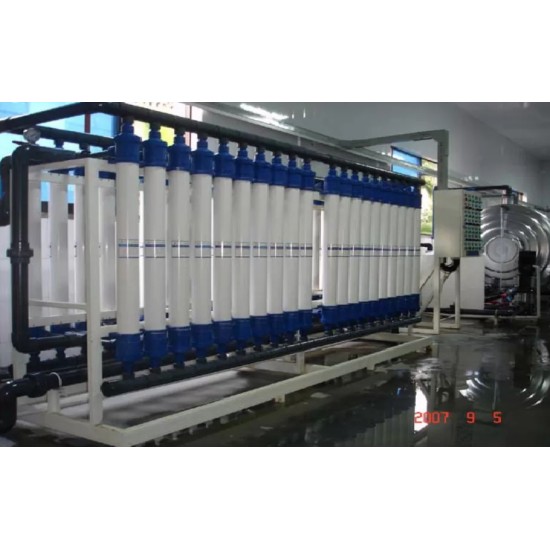

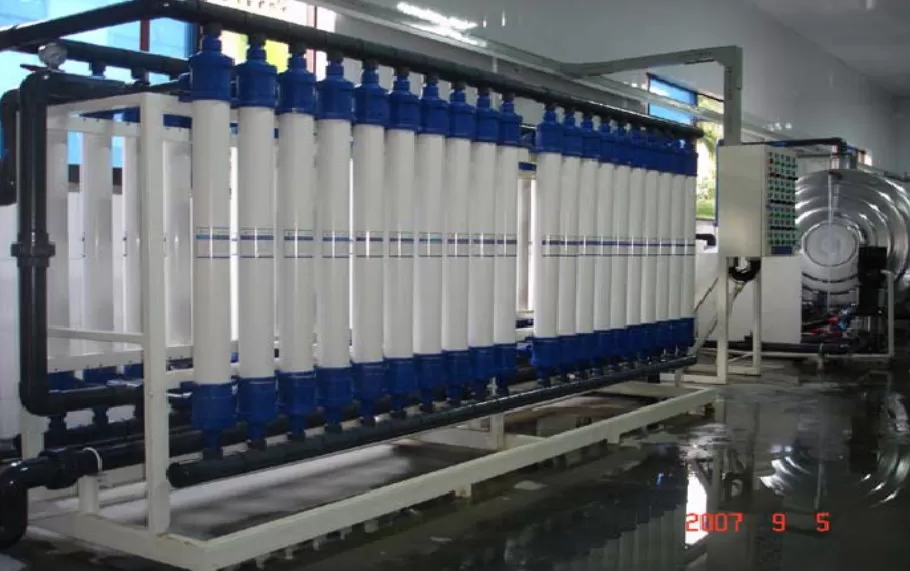

Automatic UV Sterilizer Ultra Filtration Systems , Fresh Water UF Filtration System
Description
Capacity: 10000L/H---50000L/H
Usage: Liquid Filter
Function: Fresh Water
Application: Water Purification
Certification: ISO ,CE
High Light: ultrafiltration water system, ultrafiltration water treatment plant
Product Name: Automatic uv sterilizer purification ultrafiltration system
Classification of Ultrafiltration Membrane
The structure of UF Membrane can be divided into plate frame type(plate type) ,Hollow Fiber Type,Tubular Type ,Coil Type and so on .Among them ,the hollow fiber UF Membrane is the most mature and advanced form of ultrafiltration technology .The outer diameter of Hollow Fiber Membrane is 0.4--2.0mm,the inner diameter is 0.3--1.4mm,hollow fiber tube wall is filled with microporous,the pore size can intercept the molecular weight of the material expression,the interception of the molecular weight of up to several thousand to hundreds of thousands.The raw water flows by pressing of outside side of hollow fiber of inside the cavity ,that forming external pressure and internal pressure type of hollow ultrafiltration membrane respectively .The UF is a dynamic filtration process ,the intercepted molecular can be drainned with concentrate without blocking the surface of the memebrane and can run continuously for a long time.

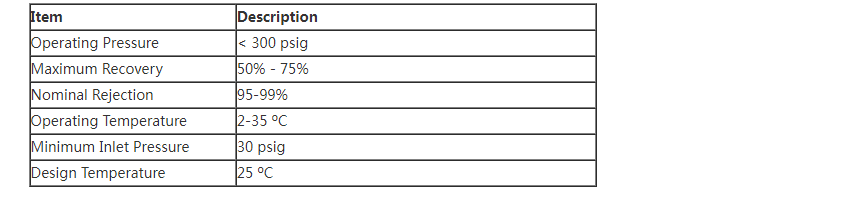

Technology Parameters:
Tag: ultrafiltration water system, ultrafiltration water treatment plant, membrane filtration equipment
