4000L Industrial Wastewater Treatment Plant System With P56 Dosing Pump
Description
Function: Water Filtering
Body Material: Carbon Steel
Control System: PLC Control System
Pipe: Stainless Steel
Capacity: 100m3per Hour
Dosing Tank: PE
Dosing Pump: P56
Raw Water: Industrial Effluent
Certificates: BV&ISO&TUV
Application: Waste Water Treatment
High Light: river water purification systems, eco friendly wastewater treatment system
lamella clarifier for water reuse equipment
Product Description
I Overview

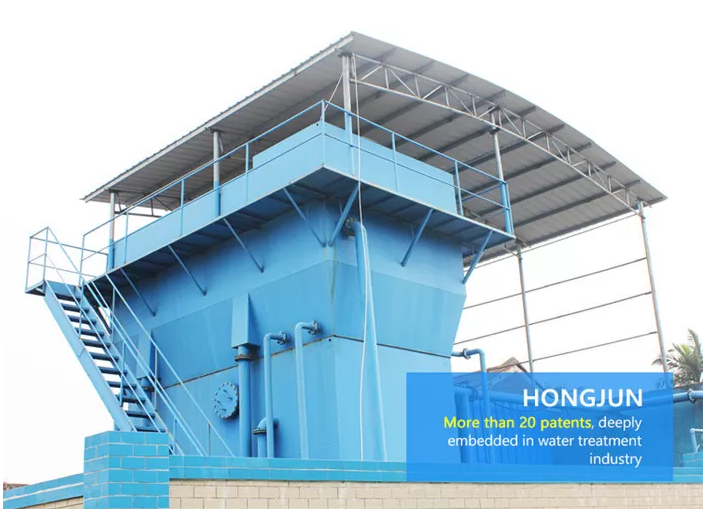

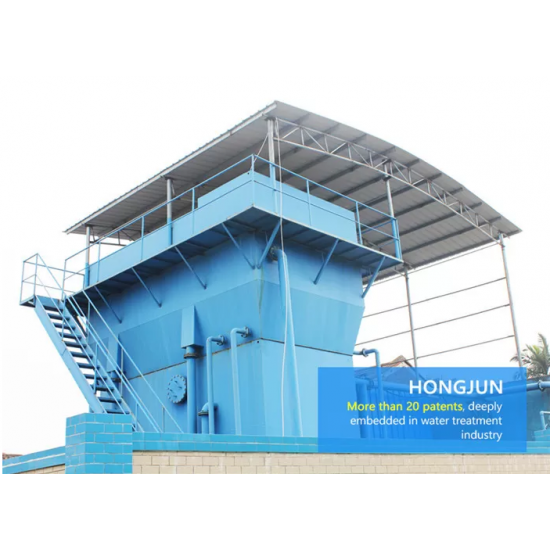

The entire integrate system composes of a grid rotational flow reactor, fast inclined tube settler and gravity
valveless sand filter.
1. A Flocculation dosing device to make the flocculating agent go through and mix into the raw water within
the mixing pipe. Then the dosed water enter the reacting tank of the integrated high-effected filtering device .
There through multistage rotational flow , organics ,suspended materials and colloid in the water combine
with flocculating agent resulting in larger flocs .
2. Those produced flocs together with water go into the sedimentation tank and settle down to the bottom
with the action of gravity and inclined tube .
3. Then water is decanted from the sedimentation tank to the filtering tank where smaller flocs are traped
over the surface of the filtering layer of quartz sand while clean water go through the layer and go into the
clean water tank being ready for use.
II Features
1 .Short construction period with equipment manufacturing and civil construction being performed
simultaneously. It can be even shortened by half time compared with civil-work project.
2 .Proactive and flexible system arrangement. Suppose production of water is required to increase, you can
make it by only adding a set of equipment in a related size. This misses the limitations of using civil-work .
3 . The system adopts commonly used rotational flow reacting which features simple structure and provides high efficiency in producing large flocs(alumen ustum). It can even achieve a level two times higher than
normal vertical flow reacting. Consequently ,rotational flow is very workable process prior to sedimentation .
4 . Sedimentation of the system occupies larger area than conventional vertical flow sedimentation and thus displays a high efficiency than vertical flow sedimentation equipment.
5 . Main equipment is made of steel with corrosion resistant and includes no moving part. The life time of the
equipment can last up to 15 years.
6 . The integrated structure of the system requires 50% smaller footprint than civil water filtering plant(Civil
gravity sedimentation tank + civil valveless siphon filter tank) . Besides, it requires water for backwash at
amount 30% less than civil plant due to it’s higher efficiency in precipitation and no need for consumption of
water from clean water tank.
III Application
This integrated water treatment system fits to river water treatment , clear wastewater treatment ,or treated effluent treatment for life water or clear recycled water use , or test for water supply work.
