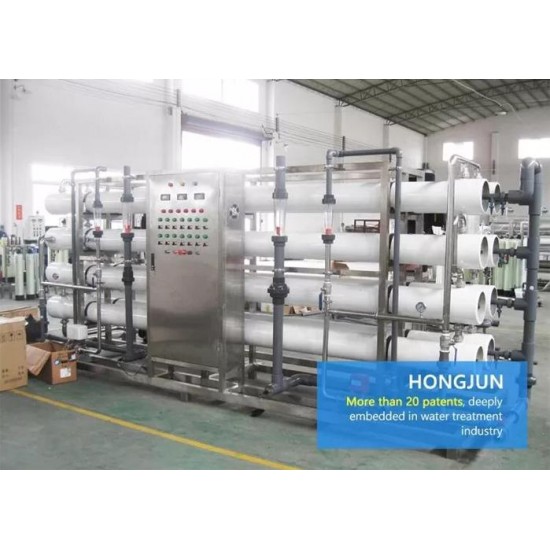

Standard Design Industrial Drinking Water Purification Systems 0.8-1.6 Mpa Working Pressure
Description
Condition: Brand New Water
Intake: Well / Ground Or River Water
Membrane Element: Dow/ Toray / Hydranautics Brand Are Optional
Working Pressure: 0.8-1.6 Mpa
Feed Water TDS: Less Than 5000ppm
Output TDS: Customized
Output Capacity: 1 M3/hr To 300 M3/hr
High Light: commercial drinking water purification systems, drinking water purification plant
Commercial Reverse Osmosis Drinking Water System with Good Price and Customized Design
We will design the water treatment plant based on the water quality provided by the customer and the requirement of output water quality.
Advantages of Our Service
High mechanical strength of membrane
Stable outlet quality, big operation flux and long service life
Strong technical support, 10 more year practical experience
Best quality with competitive price
Timely accurate quotes and flexible payment
OEM services
Product Description RO Water Purifier
RO water purification system is applied to such industries as cosmetics, pharmacy, food and electronics. Our RO plant owns high reputation in our clients for its stable water quality and simple operation procedures.
Compared with mixed bed ions exchange technology, our reverse osmosis system solves the problems of frequent regeneration and cleaning during the use of ion exchanging water purifier.
Based on physical principle, it enables the water to pass one kind of permeable membrane, the reverse osmosis membrane, with a diameter of one ten-thousand of a micron and separates impurities, ion, microbes and colloids in the water, so as to meet the water requirements in cosmetics, pharmacy, electronics and food industries.
RO filter machine are based on membrane technology that removes approximately 99.5 % salt from the water and obtain suitable pure water for drinking as well as for industrial use.
Feed water sources could be from well, river, lake and ground as per the customer’s requirement. Our plant are compact, skid mounted, factory assembled and tested before delivery assuring the best quality and smooth operation. The capacity ranges from 1 m3/ hr to 300 m3/ hr as requested.
Highlights of Clean Water RO Filtration System
Continuous water production without the need of regeneration, reducing labor strength.
Ultra-low pressure film imported from USA, with a high desalting rate of 97~98%.
Removing 98% of organic matters and bacteria, with a heat source of more than 98.
Online electric conductivity monitor, ensuring good water quality.
PLC microcomputer monitoring, flushing the RO membrane timely.
Automatic stop in case of low pressure water shortage and high pressure water sufficiency.
Fast View of RO Filter System
Pneumatic control or Electric control
Wide suitability
High filtration accuracy
Labor saving
Easy to use and maintain
Running Parameters of Reverse Osmosis Treatment Plant
1. Capacity: customized
2. Rated power: check with the configuration list
3. Voltage: 220V/ 50Hz/ 3phase, 380V/ 50Hz /3phase, or customized in different country
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤400μs or as requested feed water
7. Conductivity of pure water: ≤10μs or as request.
