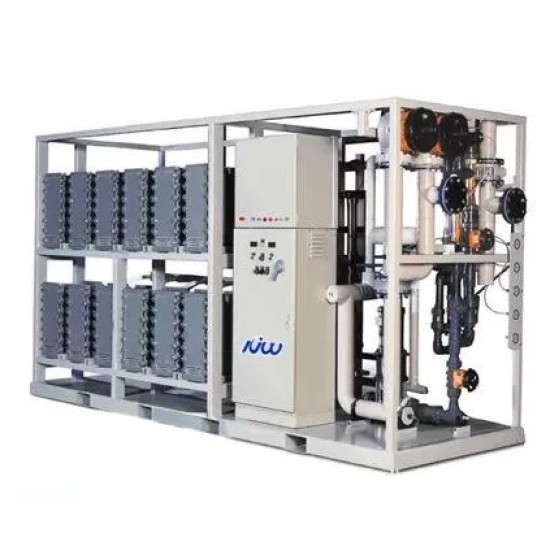

Automobile Exhaust Gas Treatment EDI Purification Equipment

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:HJ
  • Certification:ISO 9001:2008,ISO14001,CE
  • Model Number:Customized
  • Minimum Order Quantity:1 Unit/Units
  • Price:Negotiable
  • Packaging Details:Carton or Wooden case
  • Delivery Time:7-10days after payment arrived
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability:1000 sets per year
Contact Now Chat Now

Automobile Exhaust Gas Treatment EDI Purification Equipment

Description

Name: EDI Water Plant

Capacity: 0.5-100m3/h

Raw Water: Tap Water

Outlet Water's Silica: 5~20ppb

Outlet Water's Resistivity: 16~18.2MΩ.cm

Outlet Water's PH: 7.0±0.2

Application: Pharmaceutical, Microelectronics, Power Generation Industry, Etc.

High Light: EDI Purification Equipment, 100m3/h EDI Purification Equipment

EDI Automobile Exhaust Gas Treatment Solution Production And Purification Equipment



EDI main economic and technical indicators

Pretreatment flow ≥2.5T/H;

The first-level reverse osmosis product water ≥1.5T/H;

Secondary RO water production ≥1T/H;

The first-level reverse osmosis conductivity ≤15μs/cm;

The conductivity of secondary reverse osmosis ≤10μs/cm;

EDI product water resistivity ≥14MΩ·CM;

Polishing mixed bed water production resistivity ≥17MΩ·CM (using nuclear grade resin) (25L inside, 35-50 tons of water per liter);

EDI product water flow ≥1000L/H;

Utilization rate of primary reverse osmosis water ≥65%;

The utilization rate of secondary reverse osmosis water is ≥85%;

EDI water utilization rate ≥90%;

EDI service life: 3-5 years (the membrane block needs to be cleaned when the water quality and water volume do not meet the standards).



EDI Technical Parameters

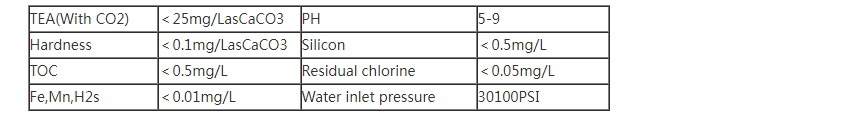

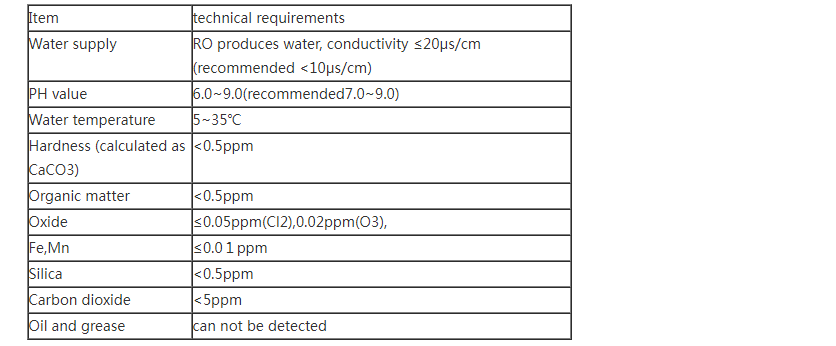

EDI (Electro Deionization) Inlet Water Requirements


Tag: edi water treatment plant, electrodeionization water treatment, edi water treatment system
